Inspection Tool

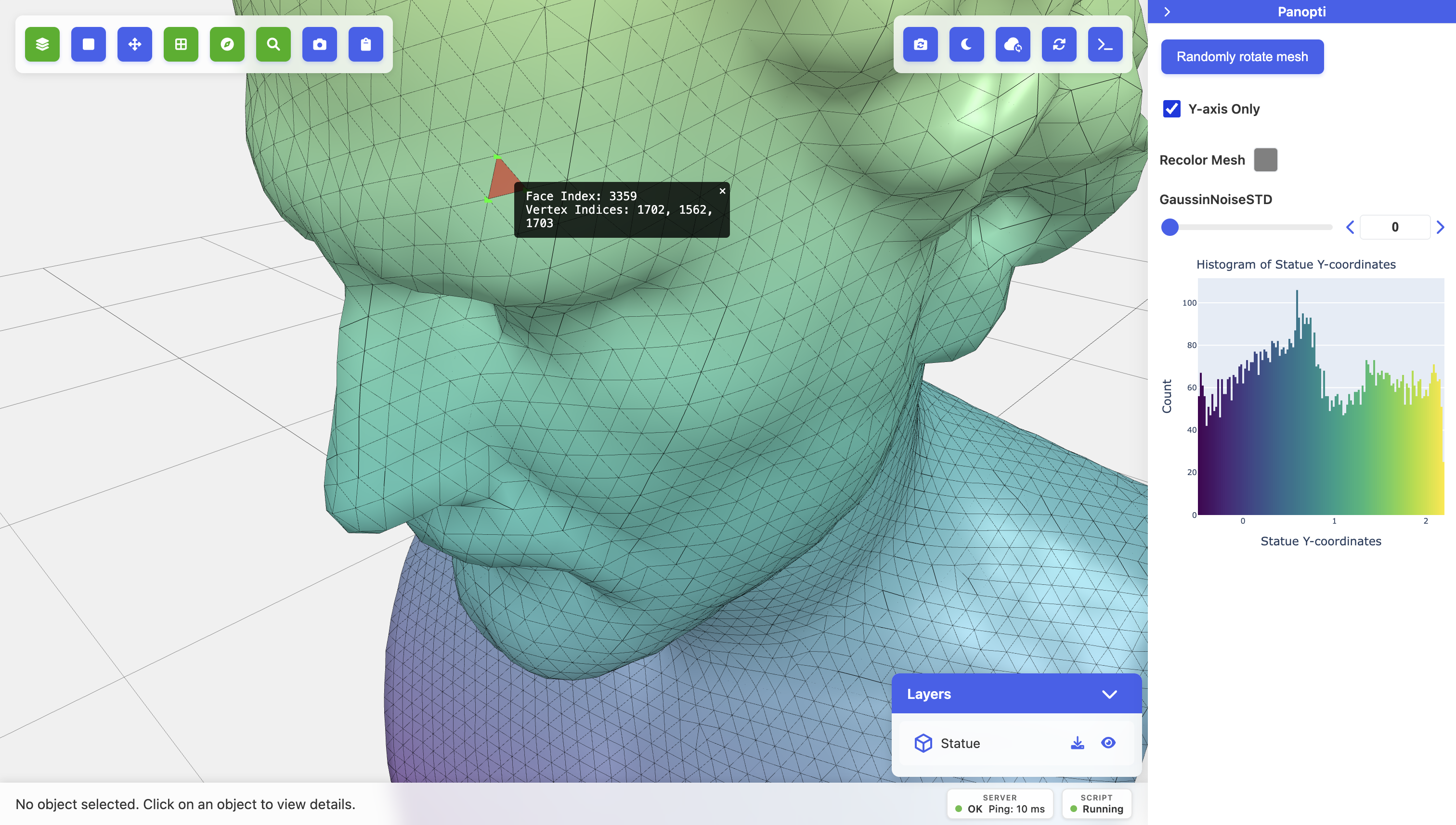

The inspection tool in Panopti allows you to interactively inspect the geometric data structures. For meshes-like objects this tool displays the selected face index and corresponding vertex indices around the face, for point clouds the selected point index is displayed.

Example: Using Inspection Events

You can react to inspection events in your Python code using the @viewer.events.inspect() decorator. This allows you to trigger custom logic whenever a user inspects an object in the viewer.

import panopti
viewer = panopti.connect(...)

# ... your scene ...

@viewer.events.inspect()
def inspect_event(viewer, inspect_info):
    print(f"User clicked on a {inspect_info.object_type} object.")
    if inspect_info.object_type in ['mesh', 'animated_mesh']:
        # inspect_result is MeshInspectResult
        print('Selected face index:', inspect_info.inspect_result.face_index)
        print('Selected vertex indices:', inspect_info.inspect_result.vertex_indices)
    elif inspect_info.object_type == 'points':
        # inspect_result is PointCloudInspectResult
        print('Selected point index:', inspect_info.inspect_result.point_index)

viewer.hold()

Inspect - @viewer.events.inspect()

Inspection Event

The inspect event is triggered when the inspection tool is used in the viewer (e.g. when clicking on a mesh to inspect its local vertex indices). Example usage:

@viewer.events.inspect()
def inspect_event(viewer, inspect_info):
    print(f"User clicked on a {inspect_info.object_type} object.")
    if inspect_info.object_type == 'mesh':
        print('Selected face index: ', inspect_info.inspect_result.face_index)

inspect_info is an InspectInfo object with the following attributes:

attribute	meaning	type
object_name	name attribute of selected object	str
object_type	type of Panopti object selected (e.g., 'mesh', 'points')	str
world_coords	XYZ world coordinates of the pick point	ndarray
screen_coords	integer pixel coordinates of the pick point	ndarray
inspect_result	geometry-specific data at the pick point: Mesh / AnimatedMesh: MeshInspectResult holding face_index and vertex_indices PointCloud: PointCloudInspectResult holding point_index	Union[MeshInspectResult, PointCloudInspectResult]
